Ubiquiti EdgePoint EP-R8 WISP Control Point Layer-3 Router
MMK 3,268,900
Be The First Review

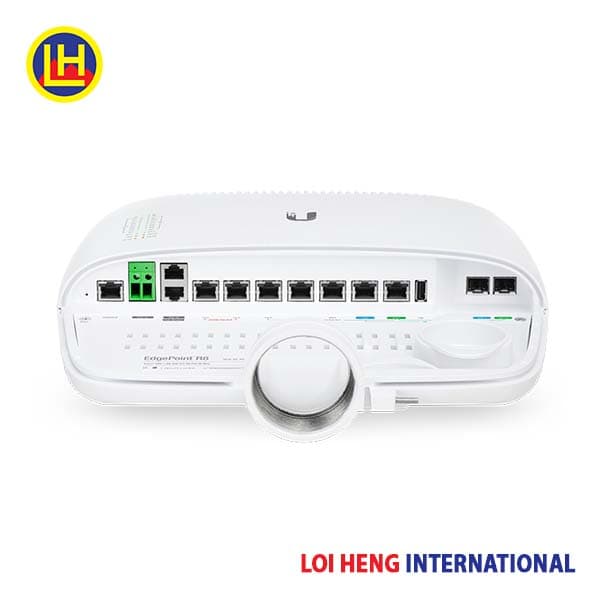

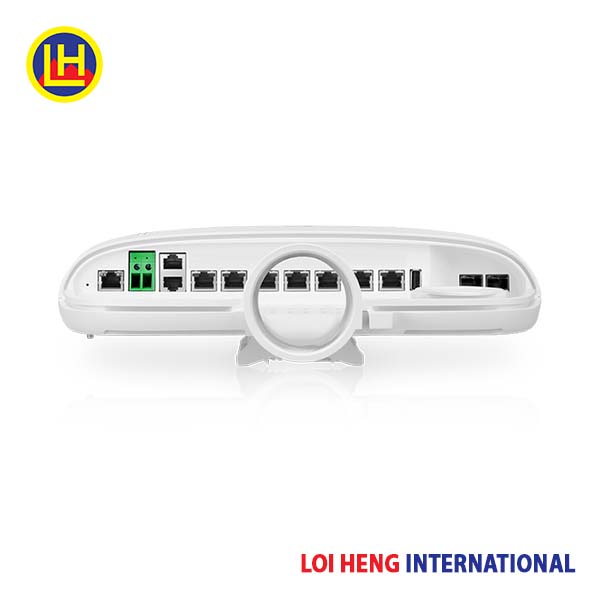

- Six RJ45 Ethernet ports and two combination RJ45/SFP Ethernet ports
- Weatherproof Enclosure for Outdoor Use
- Powerful Routing or Switching Features
- Fiber Backhaul Capability
- Intuitive User Interface
Brands:
Category:
SKU :
EP-R8
Only 1 items
In Stock
Ubiquiti introduces the EdgePoint™, part of the EdgeMAX® platform. The first application-specific designed WISP control point, the EdgePoint combines EdgeMAX routing features with fiber backhaul and versatile powering capabilities.
The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.
| EP-R8 | |
|---|---|
| Dimensions With Wall-Mount |
326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50") 326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15") |
| Weight With Wall-Mount |
3.4 kg (7.50 lb) 3.8 kg (8.38 lb) |
| Enclosure Characteristics | Diecast Aluminum Alloy and Polycarbonate with UV Resistance |
| Max. Power Consumption | 40W (Excludes PoE Output) |
| Power Input | (1) DC Terminal Block or (2) RJ45 (PoE In and eth0) (Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs) |
| Power Supply | Min. 54V / 0.8A (Excludes PoE Output Power) |
| VDC Input | 54VDC, 6A |
| Passive PoE Input | (2) 54V / 1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0 and PoE In (PoE In is DC Only, No Data) |
| Passive PoE Output | (2) 54V or 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth1 to eth2 (5) 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth3 to eth7 |
| Power Monitoring | (1) DC Terminal Block, Input Power (2) RJ45, PoE In and eth0, Input Power |
| Supported Voltage Range | 56 to 42VDC |
| Button | Reset |
| LEDs System eth0 eth1 to eth7 SFP |
Power Speed/Link/Activity Speed/Link/Activity, PoE Speed/Link/Activity |
| Ports Serial Console Port PoE In Port Data Ports |
(1) RJ45 Serial Port (1) RJ45 Port (6) 10/100/1000 RJ45 Ports (2) 10/100/1000 RJ45/SFP Combination Ports |
| Processor | Dual-Core 600 MHz, MIPS64 with Hardware Acceleration for Packet Processing |
| System Memory | 2 GB DDR3-1600 RAM |
| Code Storage | 4 GB |
| Certifications | CE, FCC, IC |
| Pole/Wall Mount | Yes |
| Wind Loading | 153 N @ 200 km/h (34 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Operating Temperature | -40 to 65° C (-40 to 149° F) |
| Operating Humidity | 10 to 90% Noncondensing |
