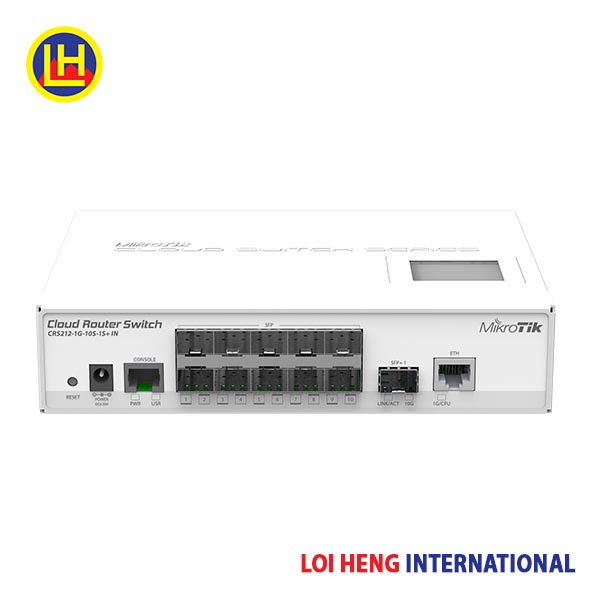

Cloud Router Switch 212-1G-10S-1S+IN is new “small size low cost” member of our CRS series. It comes with one Gigabit Ethernet RJ45 port, ten SFP cages and one 10G SFP+ cage, as well as LCD panel and serial port (RJ45). Product includes indoor desktop case and power supply. Special ears are provided for mounting the unit in rack.
Our CRS series combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
Specifications
| Details |
| Product code |
CRS212-1G-10S-1S+IN |
| Architecture |
MIPSBE |
| CPU |
QCA8519 |
| CPU core count |
1 |
| CPU nominal frequency |
400 MHz |
| Dimensions |
200 x 142 x 44 mm |
| RouterOS license |
5 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 200'000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
| |
|
Powering
| Details |
| Number of DC inputs |
1 (DC jack) |
| DC jack input Voltage |
8-30 V |
| Max power consumption |
20 W |
| Cooling type |
1 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
1 |
Fiber
| Details |
| SFP ports |
10 |
| SFP+ ports |
1 |
Peripherals
| Details |
| Serial console port |
RJ45 |
