Specifications
U-Installer
Dimensions 93 x 57 x 38.2 mm
(3.66 x 2.24 x 1.50")
Processor Atheros MIPS 74KC, 560MHz
Memory 64 MB DDR2
Buttons (1) Reset U-Installer
(1) Reset External airMAX Device
(1) Power On/Off
Networking Interfaces (1) 10/100 Ethernet Port
Wi-Fi

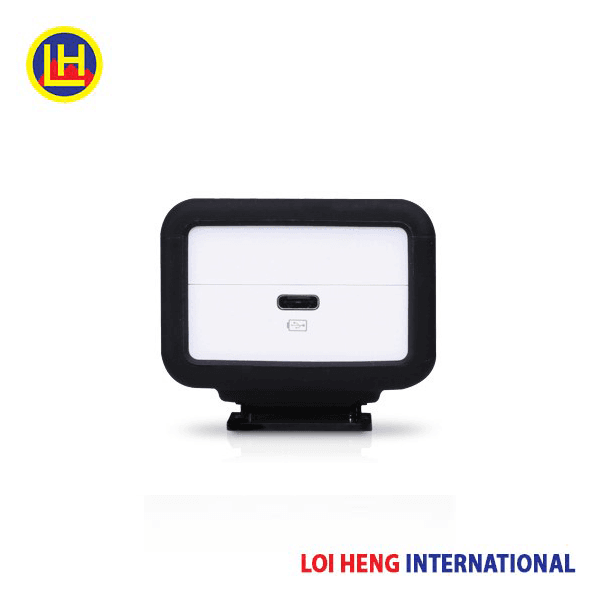

Ports (1) USB-C Port

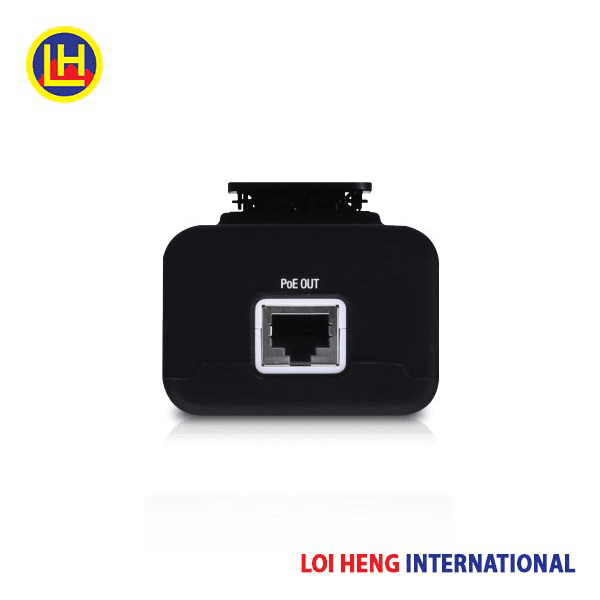

Passive PoE Output
Voltage
Max. Power
24V
12W
Management Interface Wi-Fi
Wi-Fi Frequency 2.4 GHz
Wi-Fi Standards 802.11b/g/n
Power Method Internal Battery
USB Mobile Battery Pack: 5V, 3A (Not Included)
Power Supply 5V, 3A
Supported Voltage Range 4.95 - 5.05V
Max. Power Consumption
U-Installer
U-Installer with CPE
3W
15W
LEDs (1) Wi-Fi
(4) Battery
ESD/EMP Protection 24kV Contact / Air
Operating Temperature 0 to 35° C
(32 to 95° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
